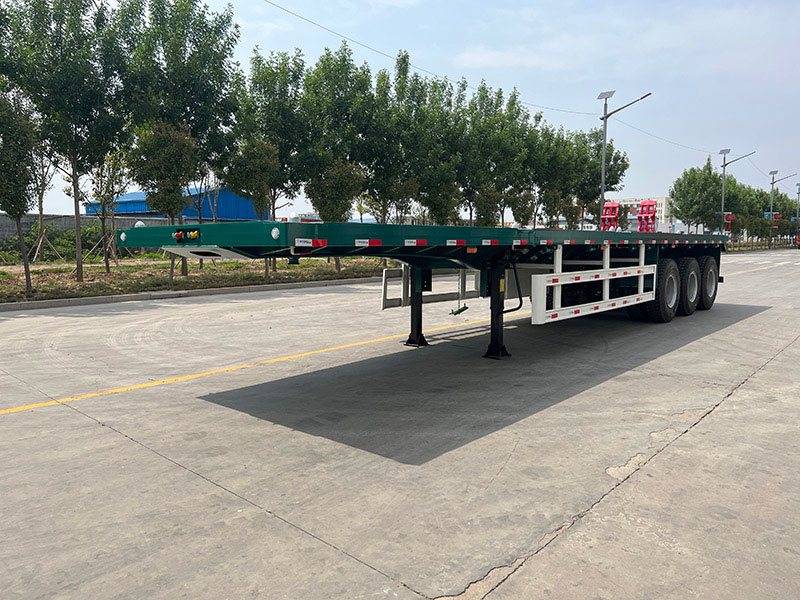

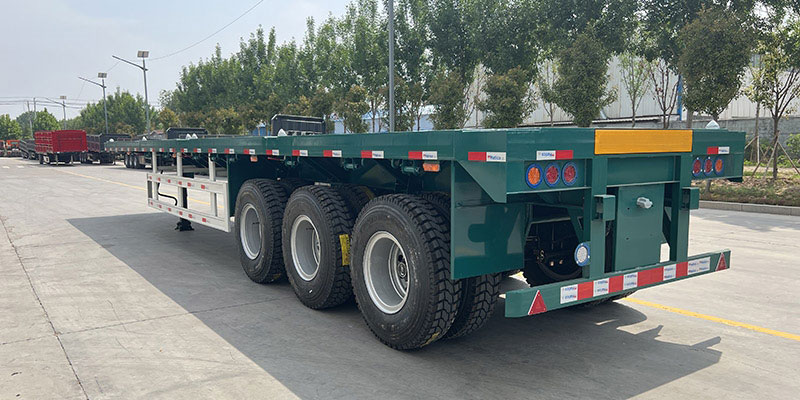

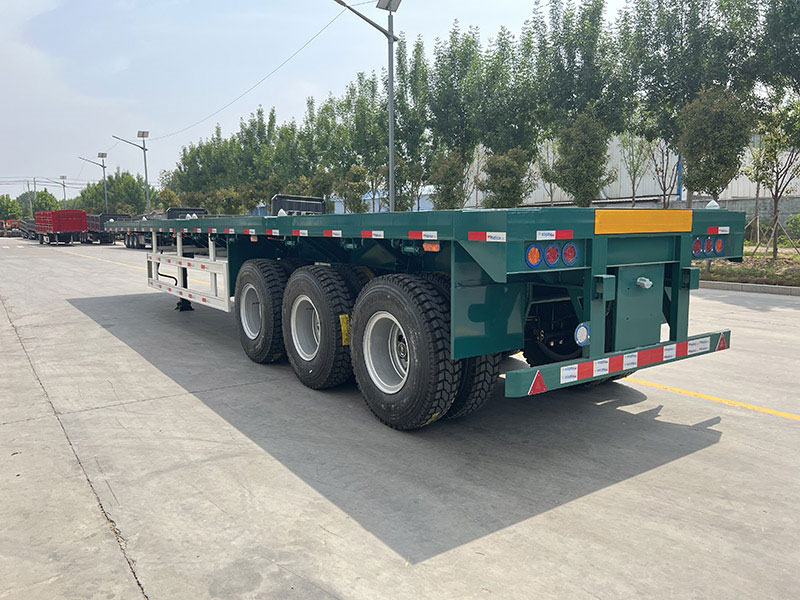

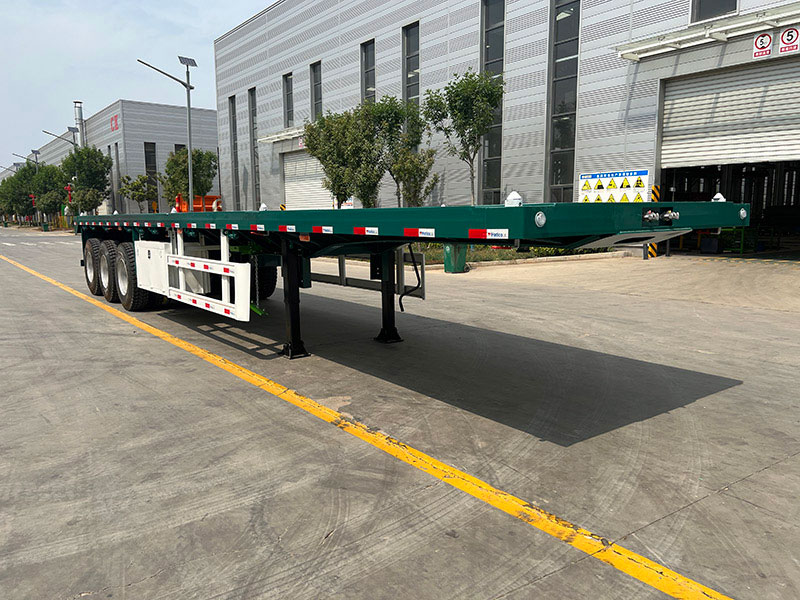

Custom Flatbed Trailer

Our customizable flatbed semi-trailer adapts to your specific transportation needs. Choose from lengths of 20 to 60 feet and 2, 3, or 4 axles, handling payloads of 20 to 80 tons.

Our customizable flatbed semi-trailer is meticulously crafted with premium materials and renowned brand-name parts. Utilizing cutting-edge welding and painting processes, we guarantee the trailer's exceptional robustness, extended lifespan, and superior resistance to rust and corrosion.

Coustom Flatbed Trailer

Specification

·Length: 20/40/45/48/53 feet and other lengths

·Load Capacity: 20-80 tons

·Standard Length: 7000mm-13950mm * 2500mm * 1570mm-1600mm

·Type: Gooseneck Type / Tandem Type

·Main Beam Material: Q345/T700

·Container Twist Locks: Standard 4-12 sets, customizable in number and position

·Tie-Down Points: Configurable to secure various types of cargo

·Axles: 2/3/4 axles * 13/16 tons, customizable based on length and load

·Suspension System: Mechanical suspension / air suspension

·Leaf Spring: 90mm * 13mm * 10 pieces / 90mm * 16mm * 10 pieces

·Brake System: High-efficiency air brake system with ABS options

·Tires: 12R22.5 (8/12 pieces)

·Rims: 9.00 * 22.5 (8/12 pieces), steel or aluminum

·Landing Gear: 28 tons, two-speed, JOST/other brands

·Kingpin: #50 (2") / #90 (3.5"), JOST/other brands

·Paint: Electrophoresis paint for enhanced rust and corrosion resistance

·Additional Options: Stakes, LED lights, reflective tape, toolbox, spare tire rack, etc.
