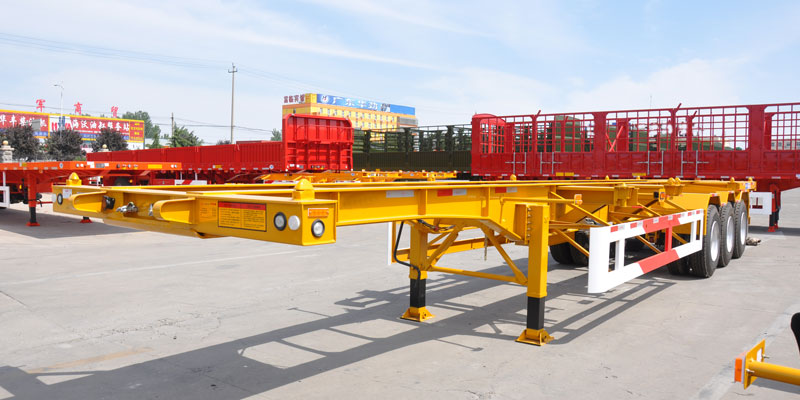

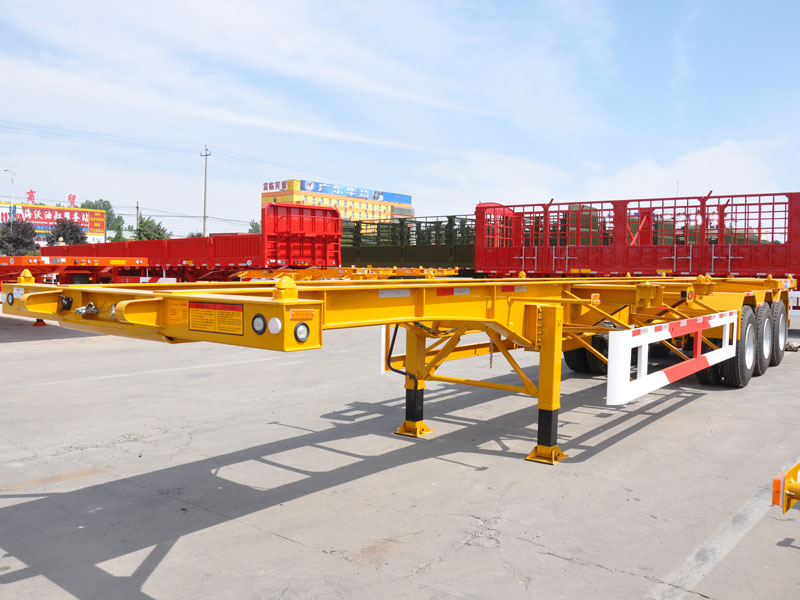

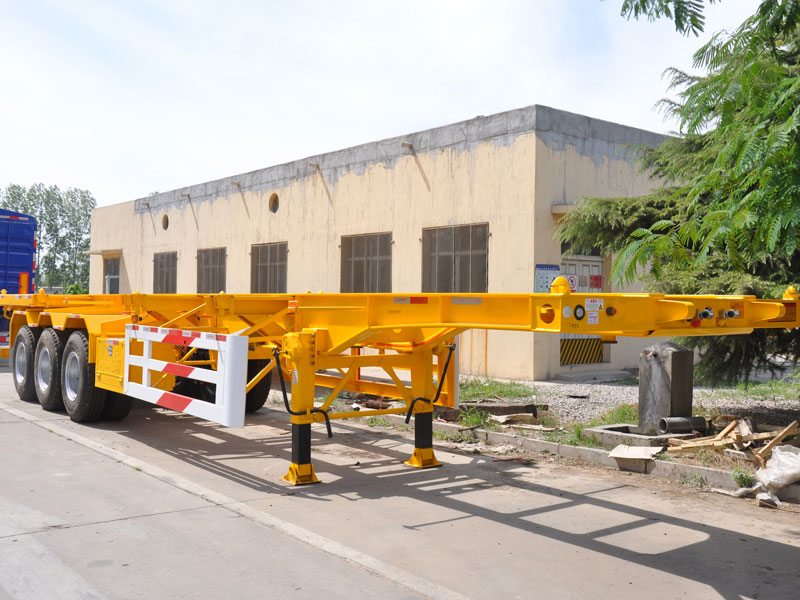

20ft/40ft/45ft Skeleton Trailer for Sale

This is a 20ft/40ft/45ft skeleton trailer for sale. It comes in lengths of 20/40/45 feet to meet various transportation needs and is equipped with 2/3/4 axles, suitable for carrying international standard 20ft/40ft/45ft containers.

Designed with durability and efficiency in mind, this 20ft/40ft/45ft skeleton trailer provides a reliable and customizable solution for your container transportation requirements.

Applications

 • Intermodal Transport: Seamlessly transfer containers between trucks, trains, and ships.

 • Port Operations: Efficient handling of containers within port facilities.

 • Long-Distance Logistics: Securely and reliably transport containers over long distances.

Specifications

 • Length: 20ft/40ft/45ft (Customizable)

 • Axles: 2/3/4 axles, each 13/16 tons, FUWA/BPW

 • Load Capacity: 20-80 tons

 • Type: Gooseneck or Tandem

 • Main Beam: Q345/T700

 • Suspension: Mechanical or air suspension

 • Tires: 12R22.5 (8/12/16 pieces)

 • Twist Locks: 4-12 sets

 • Leaf Spring: 90mm*13mm*10 pieces / 90mm*16mm*10 pieces

 • King Pin: #50 (2")/#90 (3.5"), JOST/Other Brand

 • Landing Gear: 28 tons two-speed, JOST/Other Brand

 • Painting: Electrophoresis painting

Key Features

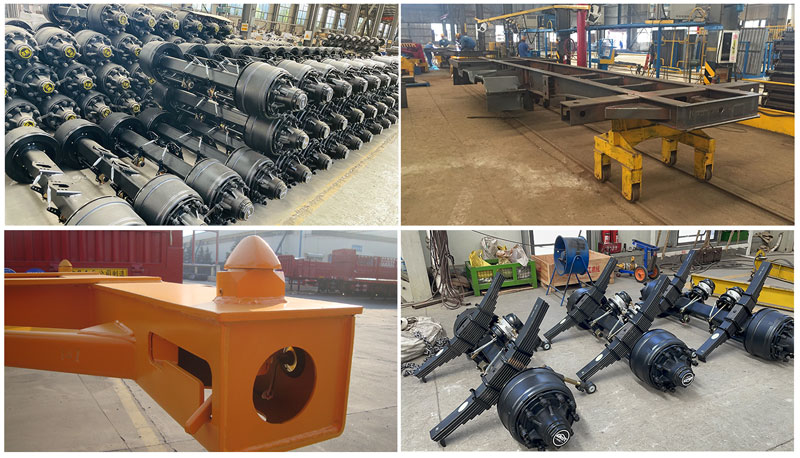

 • Welding Process: The automatic submerged arc welding process is used to process the welds, providing excellent welding for thick steel plates, maintaining excellent load-bearing capacity under extreme loads, and maintaining long-lasting durability.

 • High-Quality Materials: The main beam is made of Q345/T700, with other premium materials for cross beams and side beams to endure heavy loads and rough roads.

 • Twist Locks: Equipped with 4-12 sets twist locks, depending on the trailer length, to secure containers firmly.

 • Posts and Rails: Special container securing methods for efficient transfer within ports or docks.

 • Suspension System: Customizable mechanical or air suspension to ensure smooth rides and cargo safety.

 • Braking System: WABCO air brake system with optional ABS/EBS for optimal braking and safety.

Why Buy Our 20ft/40ft/45ft Skeleton Trailer?

 • Affordable Price: As a direct manufacturer, we sell skeleton trailers at factory prices, providing you with high-quality trailers at the best cost.

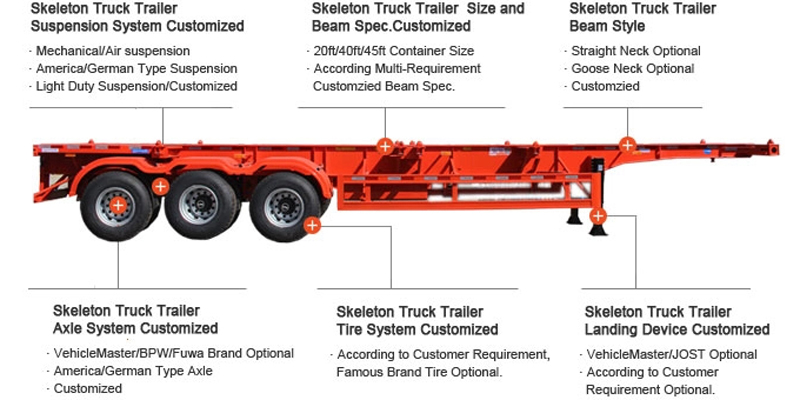

 • Customization: As a leading semi-trailer manufacturer, we offer diverse customization options to meet your specific needs.

 • Experienced Team: With 40 years of experience in semi-trailer manufacturing, we have extensive expertise in designing and building skeleton trailers.

 • Exceptional Quality: Using premium raw materials, renowned brand components, and advanced production processes, our trailers are built to last.

Contact Us

If you want to buy a high-quality 20ft/40ft/45ft skeleton trailer, our factory is your best choice. Our prices are competitive and support customization. You can contact us by leaving a message or WhatsApp(+86 13698615216).
