40ft Chassis Trailer for Sale

This is a 40ft chassis trailer for sale. This 40ft chassis trailer is sold at factory price and offers a variety of customized services. According to the use requirements, it is available in 20/40/45 ft lengths, can be used to transport containers with a load of 20-80 tons, and is equipped with 2/3/4 axles.

This affordable price 40ft chassis trailer is designed to meet the demands of modern logistics transportation. With a strong and durable structure, it can efficiently and safely transport either 2*20ft containers or 1*40ft container.

Applications

 • Container Transportation: Primarily used for transporting standard 40-foot containers, widely applied in ports, logistics parks, and freight stations.

 • Large cargo transportation: Can be converted into a flatbed semi-trailer for transporting large machinery and equipment, steel and other large cargo.

 • Special Cargo Transport: Custom modifications can be made to meet specific transport needs for special cargo.

Our Advantages

 • Affordable Pricing: As a factory-direct manufacturer, we sell the chassis trailer at factory prices, eliminating the middleman's markup, ensuring you get the best value for your investment.

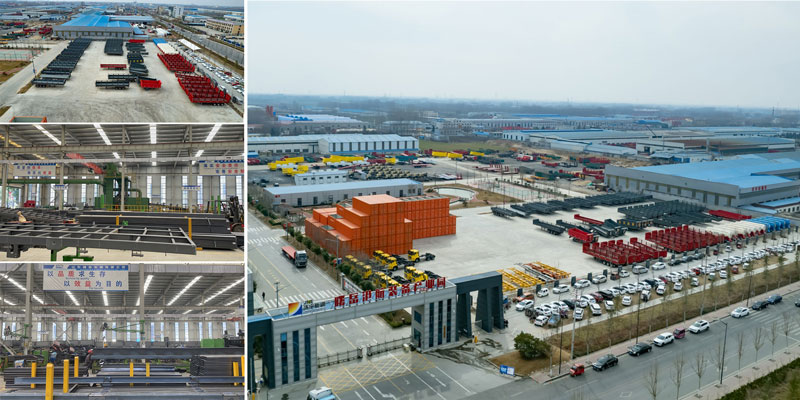

 • Reputable Brand: With 40 years of semi-trailer manufacturing experience and providing OEM services for well-known brands, you can trust the quality of our trailers.

Product Specifications

 • Length: 40 feet

 • Axles: 3/4 axles, each rated for 13/16 tons

 • Axle Brands: FUWA/BPW

 • Load Capacity: 30-80 tons

 • Main Beam Material: Q345/T700 high-strength steel

 • Type: Gooseneck or Tandem

 • Tires: 12R22.5 (12/16 pieces), Linglong/Triangle/Double-Coin/Bridgestone

 • Rims: 9.00*22.5 (12/16 pieces), Steel/Aluminum

 • Suspension: Mechanical leaf spring suspension or air suspension

 • Leaf Spring: 90mm13mm10 pieces / 90mm16mm10 pieces

 • King Pin: #50 (2") / #90 (3.5"), JOST/Other Brand

 • Landing Gear: 28-ton two-speed JOST/Other Brand

 • Twist Locks: 12 sets

 • Painting: Electrophoresis Painting

Product Features

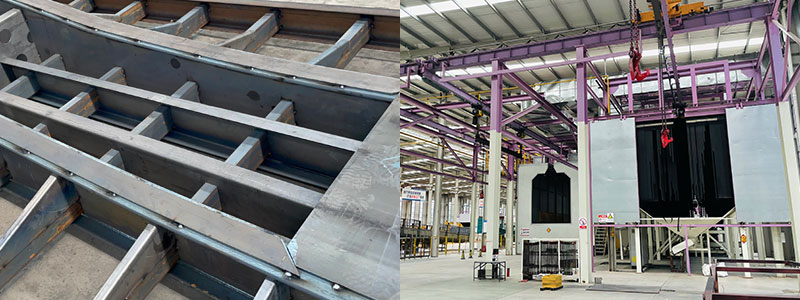

 • Excellent Craftsmanship: The automatic submerged arc welding process enhances weld quality and improves the trailer's load-bearing capacity. The electrocoating finish forms a uniform, dense coating that provides excellent corrosion resistance, effectively protecting the trailer's metal surface and extending its service life.

 • Strong and Durable: Manufactured using high-quality steel, the trailer's frame is designed for maximum durability, and the use of well-known brand parts ensures reliable long-term performance under harsh conditions.

 • Twist Locks: Equipped with twist locks according to standard container locking positions and numbers. Custom adjustments can be made to meet specific requirements.

 • Pillars and Sliding Rails: A special fixation method used for short-distance container transfers within ports or terminals.

 • Suspension: Custom options for mechanical leaf spring suspension or air suspension to enhance driving stability, reduce cargo jolts, and minimize trailer wear.

 • Tires: We use well-known brand radial tires that provide excellent load-bearing capacity and exceptional durability, significantly extending the life of the tires. These tires also reduce rolling resistance, lowering fuel consumption and reducing operational costs.

 • Safety and Reliability: Equipped with advanced braking systems and safety features to ensure secure driving.

Advantages of Our Chassis Trailers

 • Improved Transportation Efficiency: The standardized interface design allows for quick loading and unloading of containers, improving cargo turnover rates.

 • Reduced Transportation Costs: The optimized structure of our chassis trailers effectively reduces the vehicle's weight, lowers fuel consumption, and improves fuel efficiency.

 • Extended Service Life: Made with high-quality materials and advanced manufacturing processes, our chassis trailers have a longer service life and reduced maintenance costs.

 • Customization Services: We offer customized solutions based on client specifications, such as axle number, tire configuration, suspension system, and more.

After-Sales Service

We provide a comprehensive after-sales service system, including:

 • Technical Support: Professional technical consultation and guidance.

 • Spare Parts Supply: Sufficient stock of original parts for timely replacement.

 • Warranty Service: A one-year warranty on the chassis trailer with purchase.

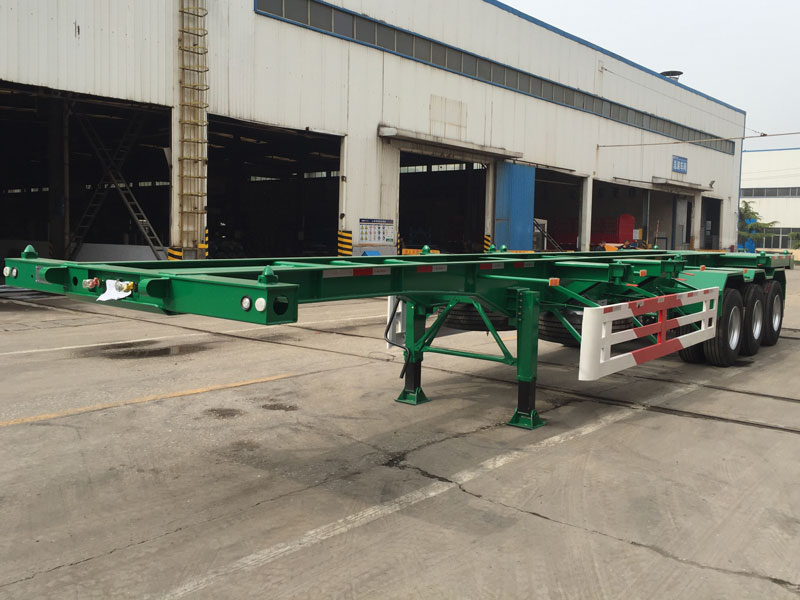

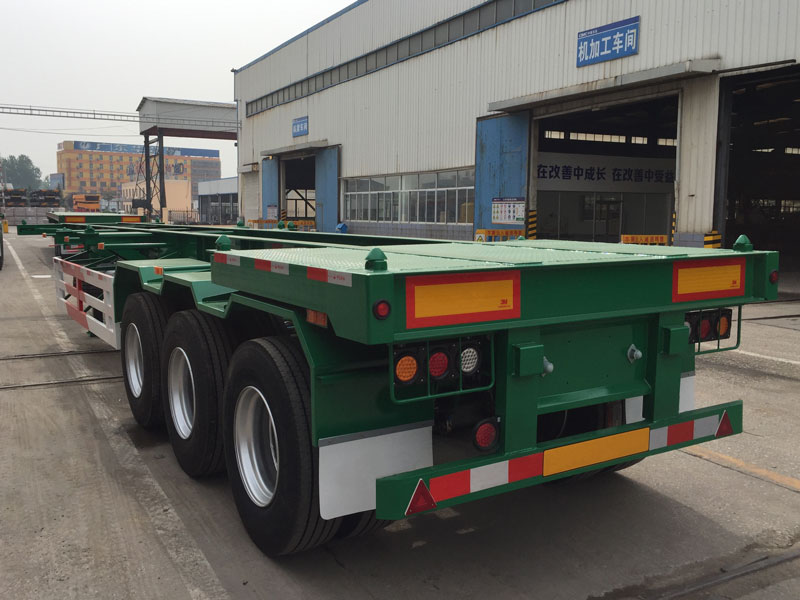

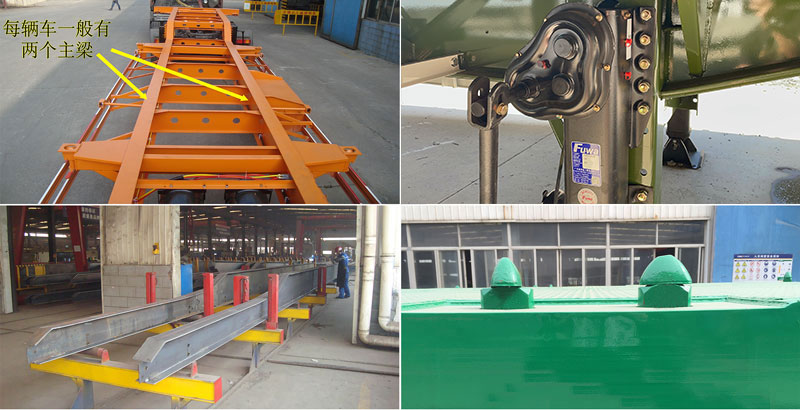

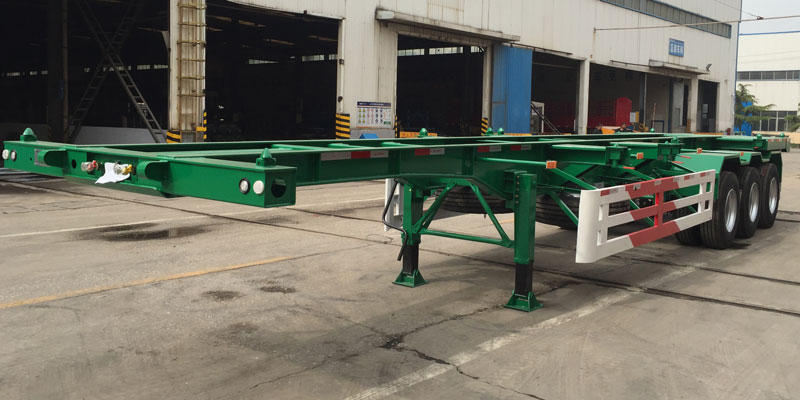

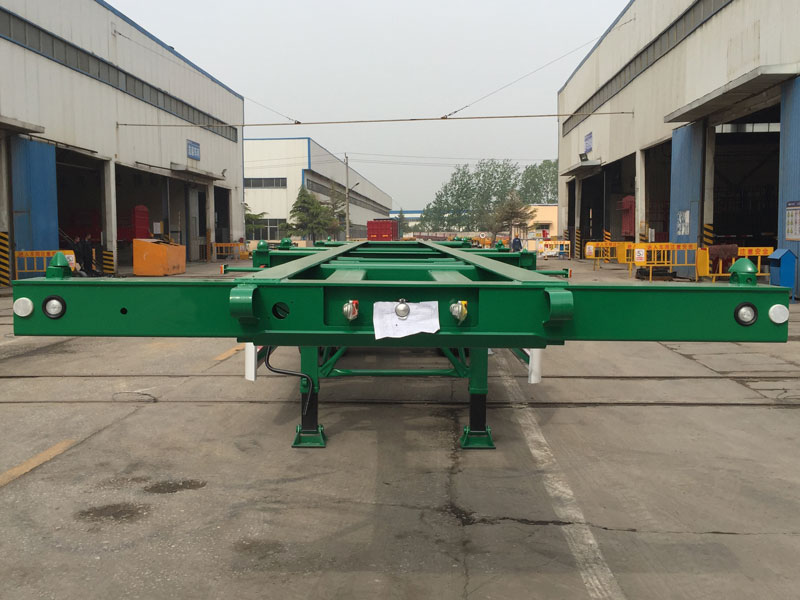

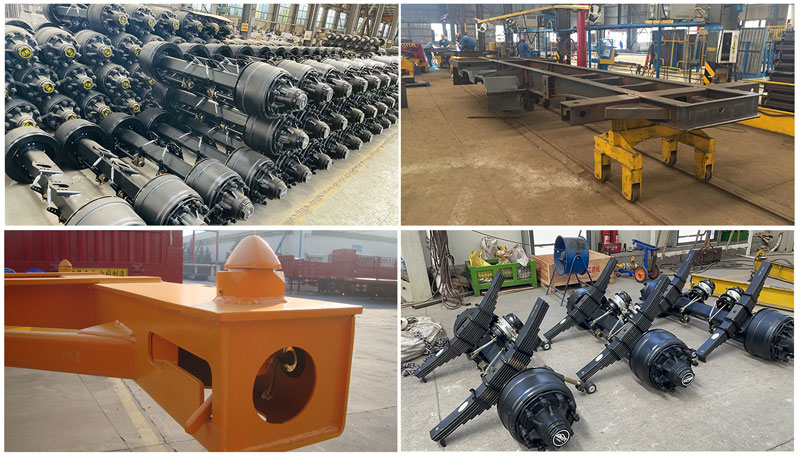

Product Images

Contact Us

If you are interested in purchasing or customizing a chassis trailer, please contact us via message or WhatsApp(+86 13698615216). Our professional engineers will provide you with free customization services and a quotation.
