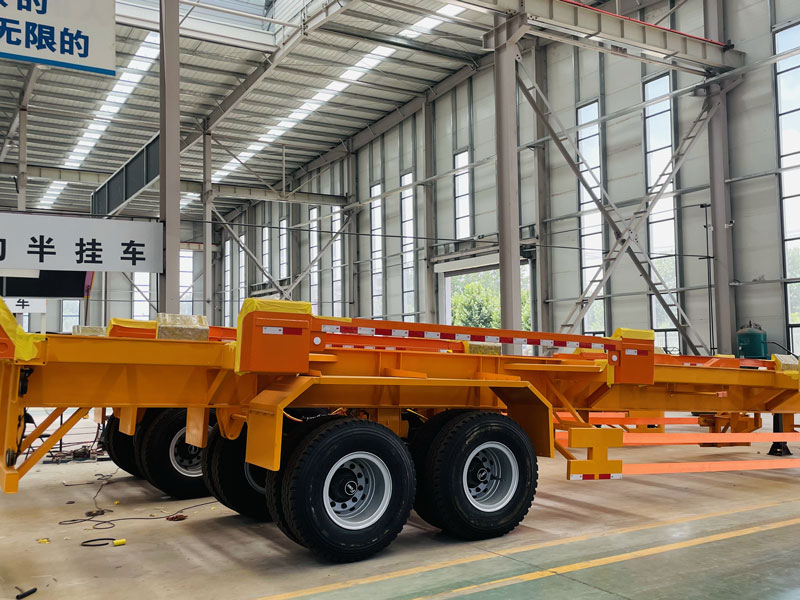

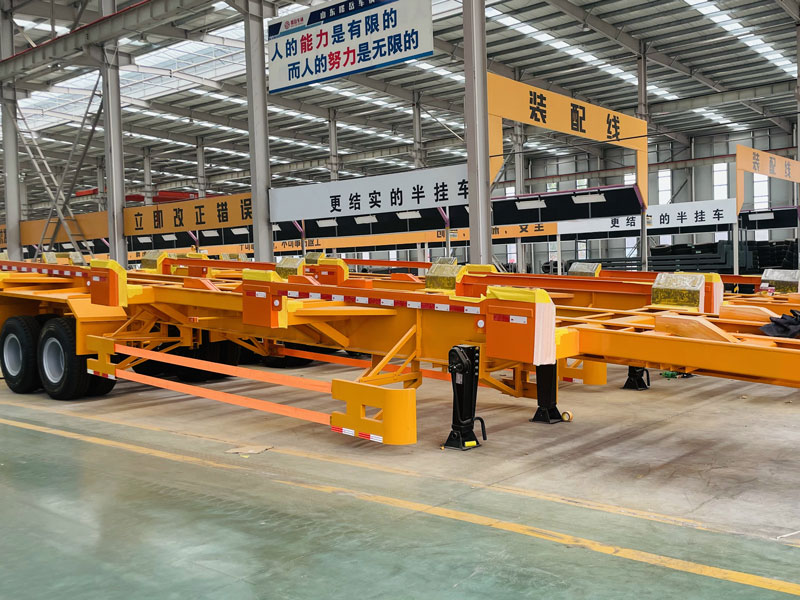

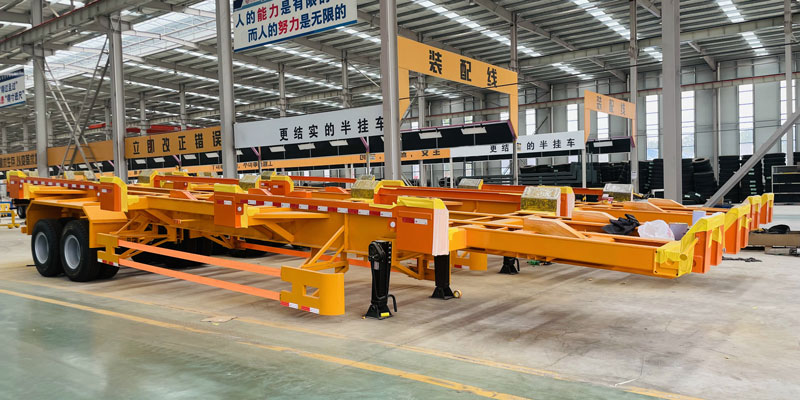

Terminal Container Semi Trailer

This container chassis trailer is specially designed for internal use in ports and terminals. It features additional bars and rails around the trailer for quick loading and unloading of containers. This container chassis trailer is only suitable for internal use in ports and terminals.

This terminal container chassis trailer is designed to standard container lengths and utilizes high-quality materials and renowned brand components to withstand the rigors of frequent loading and unloading operations. Customization options are available to cater to specific requirements, including varying lengths, load capacities, and functionalities.

Terminal Container Semi Trailer

Specification

·Axle: 2/3/4 Axles *13/16 Ton

·Length: 20/40/45ft

·Loading Capacity: 30-80 Tons

·Type: Gooseneck or Tandem

·Main Beam Material: Q345/T700

·Upper Plate Thickness: 14mm

·Middle Plate Thickness: 6mm

·Lower Plate Thickness: 16mm

·Height: 500mm

·Tire: 12R22.5 (8/12/16 Pieces)

·Rim: 9.0*22.5 (8/12/16 Pieces) , Steel/Aluminum

·Suspension: Mechanical Suspension or Air Suspension

·Leaf Spring: 90mm*13mm*10 Pieces/90mm*16mm*10 Pieces

·Brake: High-efficiency air brake, optional ABS

·King Pin: #50 (2")/#90 (3.5"), JOST/Other Brand

·Landing Gear: 28 Tons Two Speed, JOST/Other Brand

·Twist Lock: 4 Sets / 12 Sets

·Painting: Electrophoresis Painting
